SPECIFICATIONS

AC Current: SZ308 Multimeter

AC Voltage: 200V-750V

AC/DC Voltage: Yes

ANENG Model: SZ308

Battery Included: no

Brand Name: ANENG

Certification: CE,UL

Choice: yes

DC Current: 200A-200mA,Yes

DC Voltage: 200mV-1000V

DIY Supplies: Electrical

Data Record: No

Display Type: Digital Display

HFE transistor: Yes

High-concerned chemical: None

Is Smart Device: no

Measuring Capacitance Range: SZ308 Multimeter

Measuring Inductance Range: SZ308 Multimeter

Measuring Resistance Range: 200-2000K

Model Number: SZ308 Multimeter

Operating Mode: Manual Range

Operating Temperature: 0 – 40 ℃

Origin: Mainland China

Resistance: Yes

Semi-finishedproduct: No

Square wave: Yes

diode: Yes

ANENG SZ308 Digital MulAtimeter Voltage Resistance Meter AC/DC Current Meter Electrician LCD Backlight Ohm Square Wave Test



Feature:

The ANENG SZ308 is a compact, lightweight digital multimeter designed for basic household testing, DIY electronics, and hobbyist use. is a handheld digital multimeter designed and produced according to international electrical safety standards, used for measuring AC/DC voltage, AC/DC current, resistance, capacitance, diode square wave output measurement, HFE transistor measurement, and other functions.



🔥 Main Features



✅Multi-Function Testing: AC/DC voltage, DC current, resistance, continuity buzzer, diode test, hFE transistor test, square wave output, and low battery indication.





✅Clear 1999 Counts Display: Easy-to-read digital screen for fast, straightforward readings.





✅Lightweight & Portable: Only 72g with durable ABS housing, perfect for on-the-go use.





✅Safety Certified: CE-certified with built-in protection for daily low-to-medium voltage testing.





✅Long Test Leads: 70cm (27.5 inch) leads for flexible, comfortable testing in tight spaces.



Specification:

Q: Does it come with a battery?

A: No, the 6F22 9V battery is not includeddue to shipping regulations.

Q: No display after inserting the battery?

A: 1. Confirm the battery is 6F22 9V and installed with correct polarity.

    2. Clean the battery compartment contacts.

Q: Why is the reading unstable?

A: Ensure you are using the correct range and the test leads are making firm contact.



Q: The buzzer keeps beeping?

A: 1. Check if the test leads are short-circuited or the circuit being tested has residual static. 2. Clean the test lead tips. If the issue continues with no leads connected, contact us with a video.



Q: What does "OL" mean?

A: "Overload" = the value exceeds the selected range, or the circuit is open.

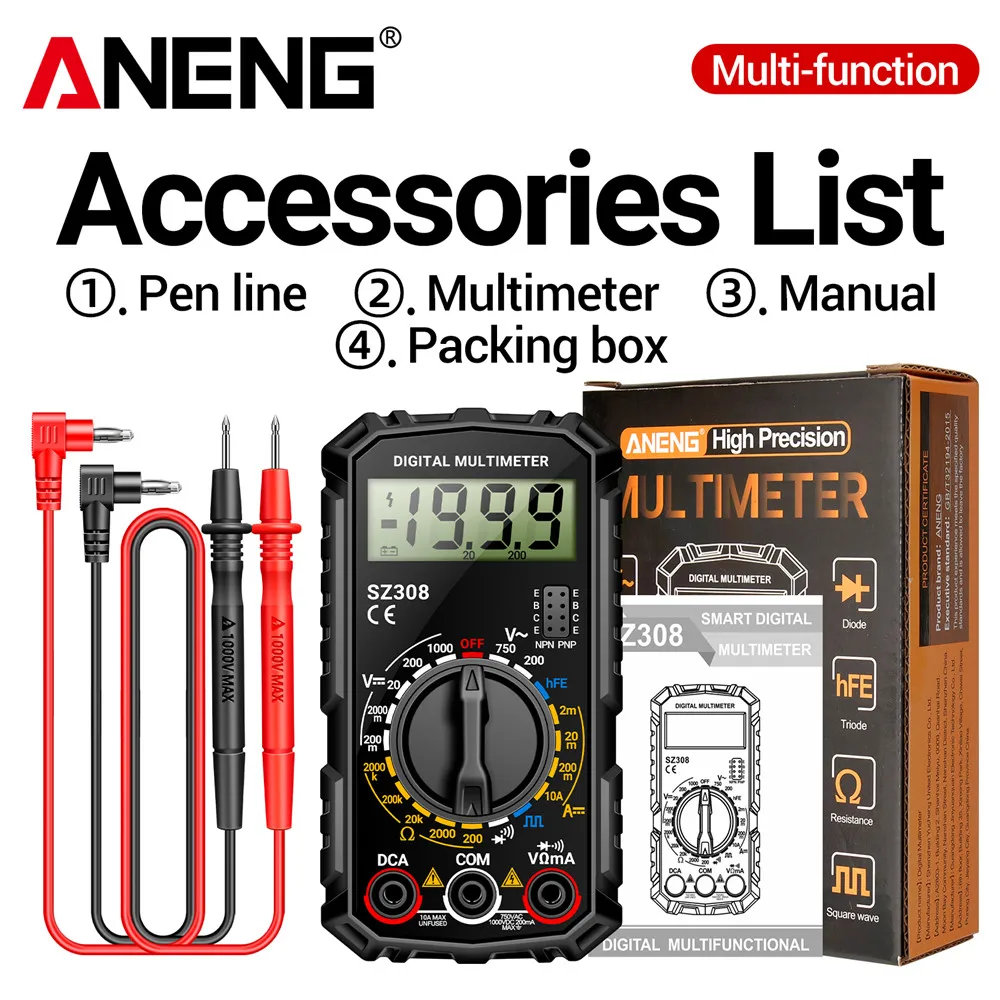

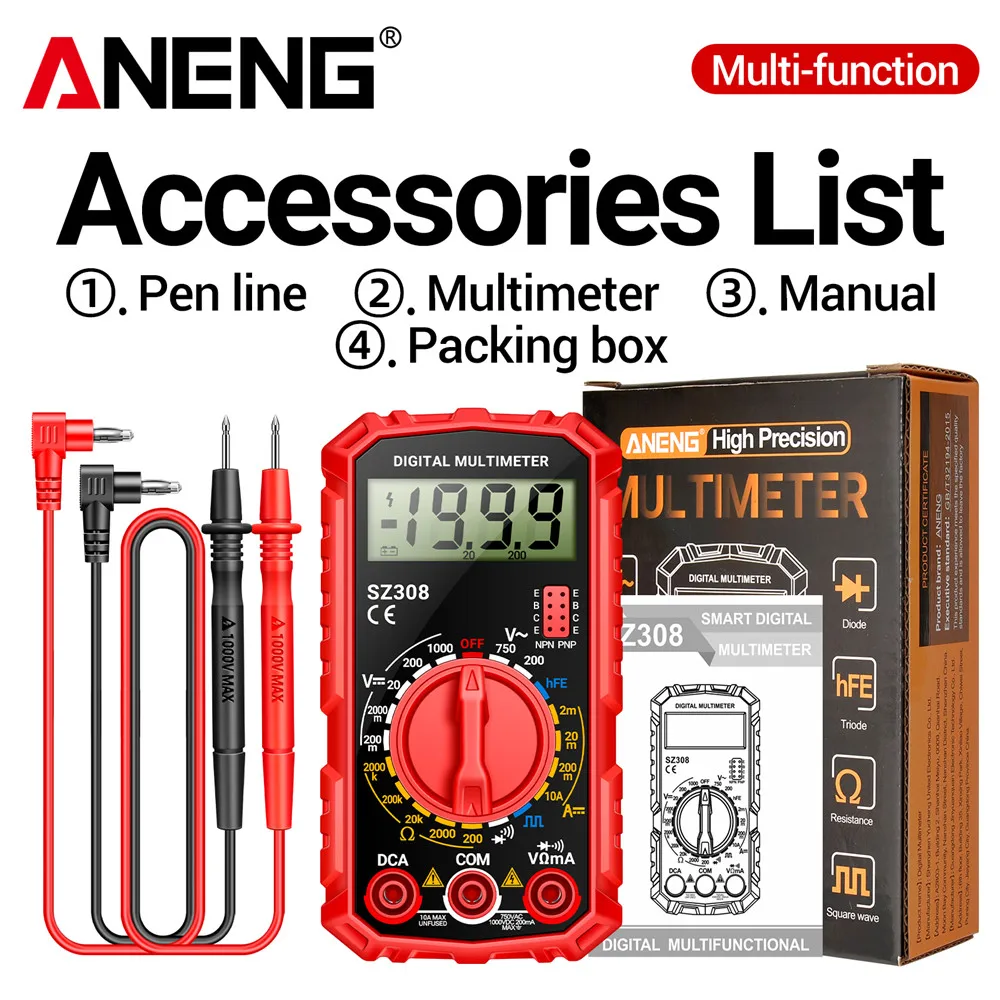

Packaging content:
1 x Multimeter (without battery)
1 x test lead
1 English user manual
1 * Packaging box





Normal battery installation steps:
